Product Description

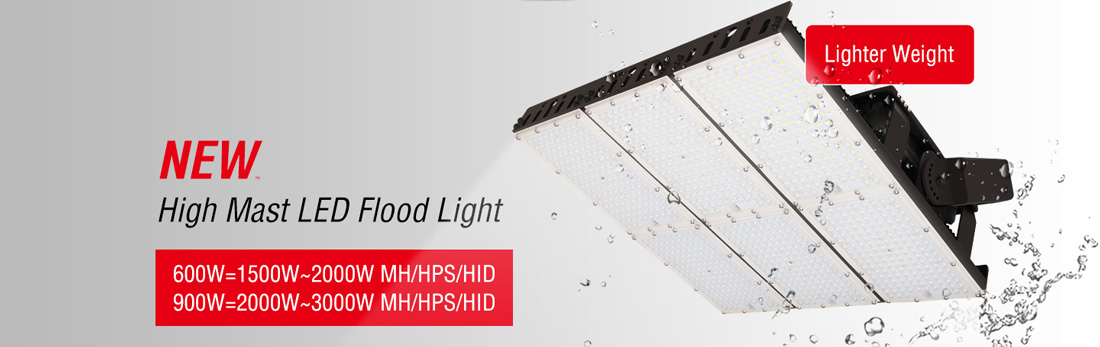

KAIWIM powerful 600W/900W high mast light is designed to replace 1,000W and 2,500W metal halide and high pressure sodium lights. The light output of 600W is up to 70,000lm, and 900W is 105,000lm, more energy-saving than ever.
The compact design makes shipping and installation much easier. And excellent thermal management with cold-forging heat sink and unique construction enables longer lifespan, almost free of maintenance.
The product is applying utility certificates, maximizing eligibility for utility rebate programs. Various options are available, including dimming, surge protection, bracket mount, 347-480V etc.
Specification Summary
| Power (W) | 600W | 600W | 600W |
| Color Temperature (CCT) | 4000K | 4500K | 5000K |
| Lumen Output (LM) | 70,000 | 70,000 | 70,000 |
| Efficacy (lm/W) | 120 | 120 | 120 |
| Input Voltage (V) | 100-277V (347-480V available) | ||
| Power Factor | >93% | ||
| CRI | ≥73 | ||
| IP Rate | IP66 | ||
| Beam Angle (°) | Type V Std. (Type II, Type III, Type IV available) | ||
| Dimensions (in) | 21.97''L x 14.22''W x 5.13''H | ||
| LED Class | Seoul 3030 SMD LEDs, UL Listed: LM80 | ||
| Driver Class | Meanwell, UL Listed: Class II | ||
| Surge Protection | 20kA/40kV SPD optional | ||
| Dimming | Dimming optional | ||
| Environment | Indoor or Outdoor | ||
| Operating Temperature | –35°C to +45°C | ||
| Certifications | UL/cUL, CE, RoHS, LM79, LM80 | ||
| L70 Lifetime (hours) | 150,000 hours | ||
| Warranty | 6-year limited system warranty standard | ||
Features• High system efficacy up to 120 LPW |
Controls• 0-10V dimming optional |
Optics• Type II, Type III, Type IV , Type V optional |
Housing & Finish• Die-casting aluminum heat sink |
Electrical• 100-277VAC, and 347-480VAC available, 50/60Hz |
Compliance• DLC Premium |
Ratings• IP66 waterproof |
Warranty• 6-year limited system warranty |
Beam Angle
Advantages
Real Mean Well Driver
One of our subsidiary corporations is a Mean Well distributor, allowing us quality source for Mean well drivers.
Structure
● Heat Sink: Air convection holes on the radiator module can accelerate air flow to achieve excellent heat dissipation radiator.
● Bracket: Adjustable angle ranges from 30° to 150°.
● Spliced Module: Standard radiator module can be connected into different wattage per customers' requirement, shorten lead time.
Dimension
Installation Options
Yoke bracket (others customizable)
Applications
• Indoor & outdoor lighting
• Sports field, airport area, roadway, warehouse, high mast pole, etc.
It is IP66 rate and can be widely used for both indoor and outdoor areas, including warehouse, stadium, high mast pole, port, etc.
