LED Smart Sensor Series

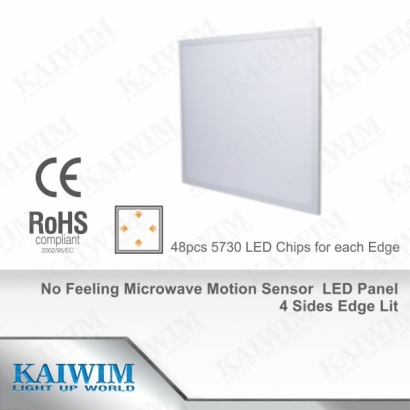

No Feeling Microwave Motion Sensor LED Panel - 4 Sides Edge Lit

No Feeling Microwave Motion Sensor LED Panel - 4 Sides Edge Lit

Model No:KWBU-PL-03
DETAIL

No Feeling Microwave Motion Sensor LED Panel - 4 Sides Edge Lit

Key Features

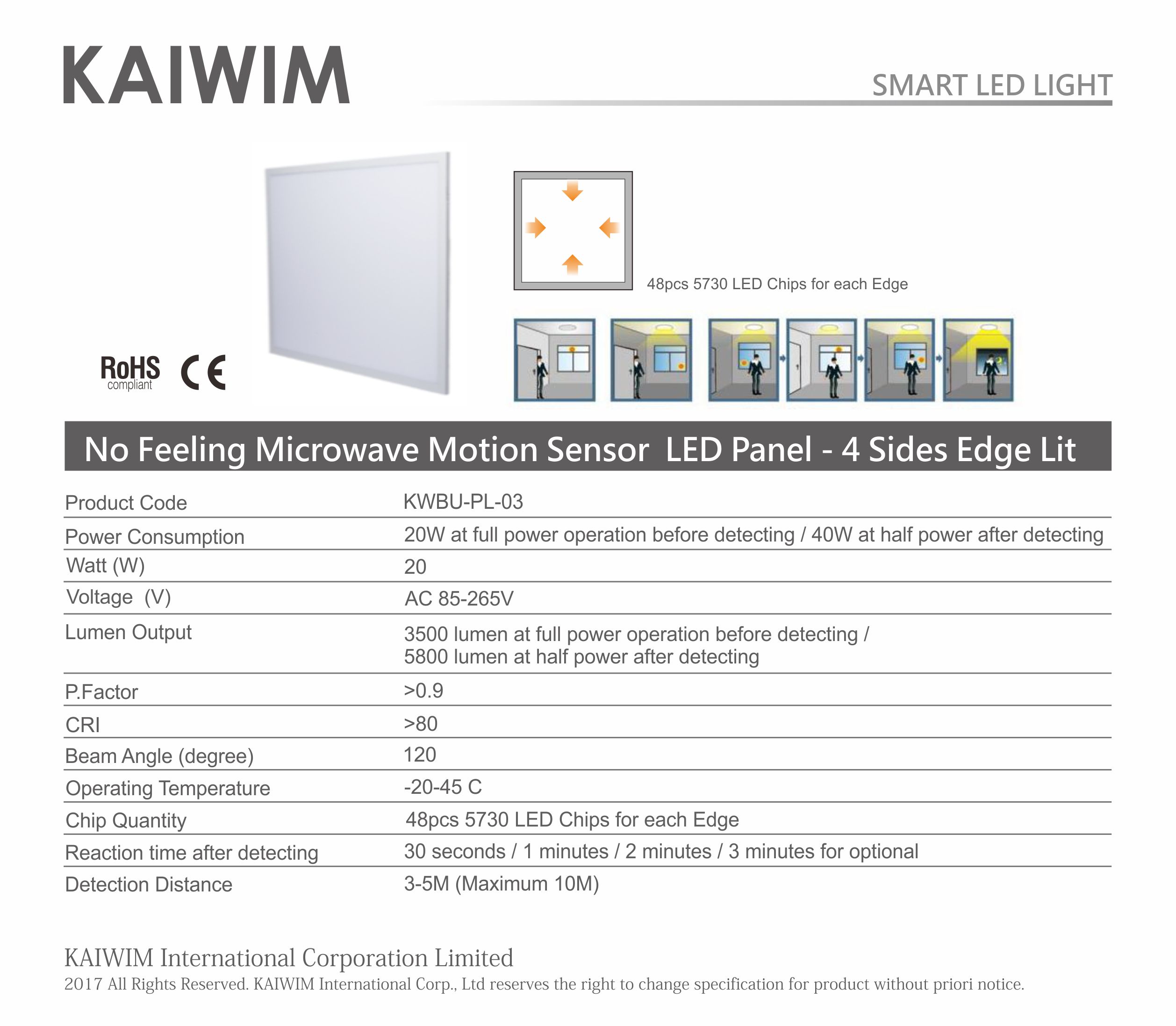

Spec

Light Source LED
Beam Angle (degree) 120
CCT (K) 2700-6500K
CRI > 80
Chip Quantity 48pcs 5730 LED Chips for each Edge
Detection Distance 3-5M (Maximum 10M)
Lumens (lm) 3500 lumen at full power operation before detecting / 5800 lumen at half power after detecting
Operating Temperature -20-45 C
Power Factor >0.9
Reaction time after detecting 30 seconds / 1 minutes / 2 minutes / 3 minutes for optional
Voltage (V) AC 85-265V
Warranty Period 2 Years
Watt (W) 20W at full power operation before detecting / 40W at half power after detecting

Product Certification
